What to Prepare Before Building a Water Utility Dispatch Dashboard

Summary: Before implementing a water utility dispatch dashboard, inventory water plants, pump stations, network zones, monitoring points, live flow and pressure, water-quality metrics, alert rules, dispatch procedures, video resources, emergency plans, and permission boundaries. The goal is not to put every point on a map. Dispatchers should be able to see what is abnormal, how far the effect extends, and what to do next.

Decide which water utility scenario the dashboard serves

A water visualization project may support supply dispatch, drainage and flood prevention, wastewater treatment, plant production, pump-station operation, network monitoring, customer work orders, or emergency command. The home page will differ for each. Supply dispatch emphasizes flow, pressure, pump stations, and network zones. Flood prevention emphasizes rain, water level, flood-prone points, gates and pumps, and response progress. Plant production emphasizes process stages, equipment, quality, and energy use.

If the scenario is not defined early, screenshots from many systems may end up on one page while dispatchers still cannot tell where to look first. Choose one or two core scenarios for the first phase, then add topic pages gradually.

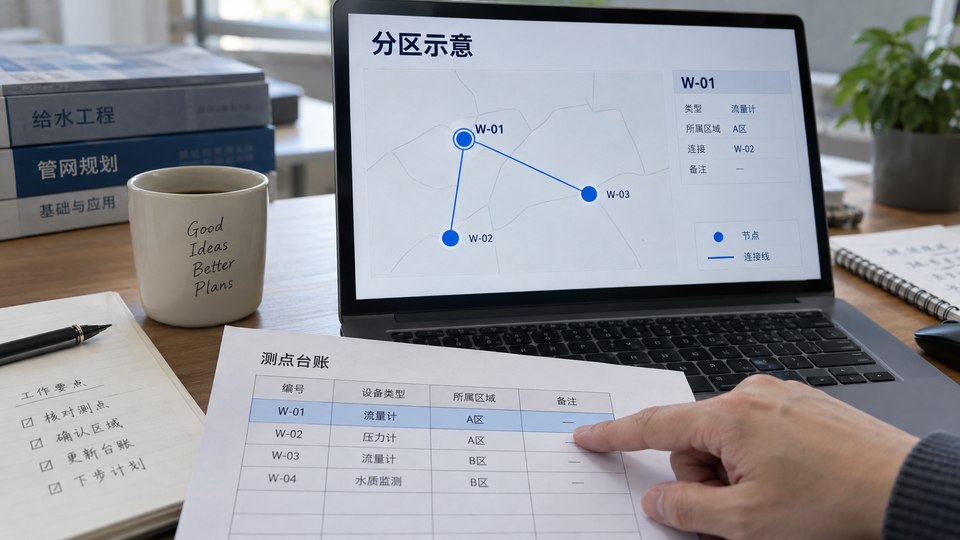

A monitoring-point inventory makes pages work together

Common points include water plants, pump and booster stations, valves, flow and pressure meters, water-quality and level sensors, rain gauges, video points, and key users. The inventory should include at least each point's name, code, type, region, coordinates or zone location, data source, update frequency, and responsible department.

Without a complete inventory, maps and alert pages become display-only screens that cannot lead to equipment status, history, or response records. Align point codes and locations early, or the same device may acquire different names across integrated systems.

Separate live monitoring values from management measures

Common measures include supplied volume, instantaneous flow, network and outlet pressure, levels, quality, residual chlorine, turbidity, pH, COD, ammonia nitrogen, pump status, equipment energy, online rate, and alert count. Live dispatch focuses on current values, trends, and threshold breaches. Management reviews focus on daily and monthly totals, period comparisons, equipment efficiency, and response time.

Mark the use case for each measure. Pump-station level supports live duty; energy per unit of water supports efficiency review; network pressure below a threshold supports linked alert response. This organizes the page around actions instead of just numbers.

Define alert triggers and response responsibility

Water dispatch alerts should show more than a red dot. Include event type, severity, trigger threshold, duration, linked point, affected area, handler, status, and review result. For pressure anomalies, offline devices, quality exceedances, abnormal levels, pump failures, and video faults, decide whether SMS, calls, work orders, or emergency plans should be triggered.

If a work-order system or dispatch process already exists, show its key steps on the dashboard rather than rebuilding the whole workflow. The dashboard should help locate and respond to issues quickly; it need not replace every back-office system.

Maps must explain the affected area

Maps and zone diagrams are valuable in water projects, but not as decoration. They should answer where an event happened, which areas are affected, what equipment and resources are nearby, and whether it has happened before. Network and pressure zones and key-user locations matter in supply scenarios; flood-prone points, rain gauges, levels, and outfalls matter more in drainage.

Without complete GIS data, begin with an area diagram or zone plan. Upgrade to richer spatial views once network, point, and basemap records are ready.

Confirm video and field resources early

Many dispatch teams want to open video from an alert. Feasibility depends on camera inventory, platform protocol, account permissions, network policy, and browser playback support. Before implementation, record camera names, codes, positions, zones, source platforms, preview addresses, and access rules.

If video cannot yet be integrated, use site photos, equipment records, or point details initially. Do not hold up the first phase for video unless it is essential to the response workflow.

How to structure the pages

A supply-dispatch project can use five page types: overview of plants, stations, network, alerts, and key measures; map or zone view of points and regional state; pump-station or plant details with process, equipment, pressure, flow, and energy; alerts and work orders with response progress; and retrospective analysis of trends, energy, and handling efficiency.

Drainage and flood-prevention projects emphasize rainfall, water levels, flooded locations, gate-pump coordination, emergency resources, and response progress. Wastewater treatment emphasizes process stages, quality, chemicals, energy, equipment, and compliance. Adapt the structure to the operation rather than reusing a generic dashboard template.

Pre-implementation materials checklist

Prepare at least eight groups of materials: plant, station, and network-zone inventory; monitoring-point register; equipment register; definitions of core measures; API documentation or sample data; alert rules; video inventory; and dispatch procedures and access permissions. Historical reports, duty logs, work orders, and emergency plans also help shape retrospective and response pages.

The first planning phase can begin even with incomplete materials. Use sample sheets, screenshots, and simulated data to agree on page structure, then integrate APIs, GIS, video, and work-order systems in stages. Label real data, simulated data, and future scope clearly within the project plan.

What to ask a development team

Ask four questions of a water-dispatch dashboard team. Can it connect point locations, measures, and dispatch procedures? Can it integrate maps, video, alerts, and business systems? Does it support private deployment and layered permissions? Will it hand over the point register, field definitions, deployment instructions, and acceptance materials?

A mature approach starts by validating the dispatch scenario, data sources, and response path rather than drawing an overcrowded overview. That makes the first phase easier to launch and later expansion to more stations, areas, and topics easier to manage.
